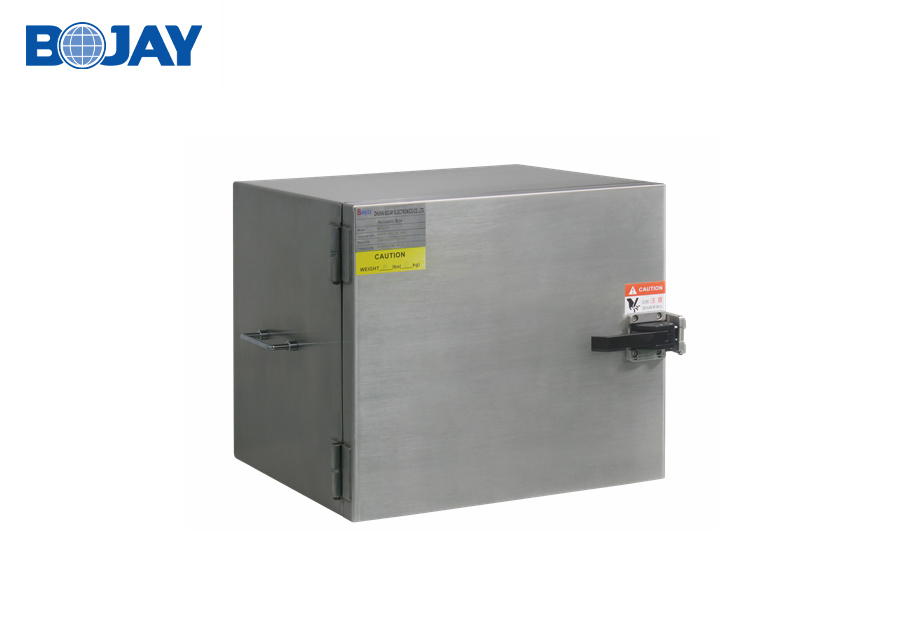

Manual Acoustic Chamber | BJ-B16
Application part, Fan, Motor, Mobile phone products, Pad and other consumer electronics products audio testing needs
DUT external dimensions : L<135mm, W<210mm, H<80mm
- 产品详情
- 文件下载
Main Features
● Manual operation
● Automatic test fixture
● Stand-alone testing
● The detection function of detection operation door switch state, only after the operation door is closed, can be tested, with the role of fool-proofing
Specification
Complete machine dimensions | 443 * 514 * 446mm (L*W*H) |
External dimensions | 405 * 488 * 421mm (L*W*H) |
Inner dimensions | 235 * 310 * 243mm (L*W*H) |
Operating Door Dimension | 310 * 243 (W*H) |
Main Structure | Metal |
Net weight | 37KG |
Acoustic Criterion
Frequency | 100 Hz | 200 Hz | 500 Hz | 1000 Hz | 5000 Hz |
Sound insulation specification | >15dB | >25dB | >35dB | >50dB | >50dB |
Reference background noise | ≤40dBA (Environment pink noise 75dBA) |
