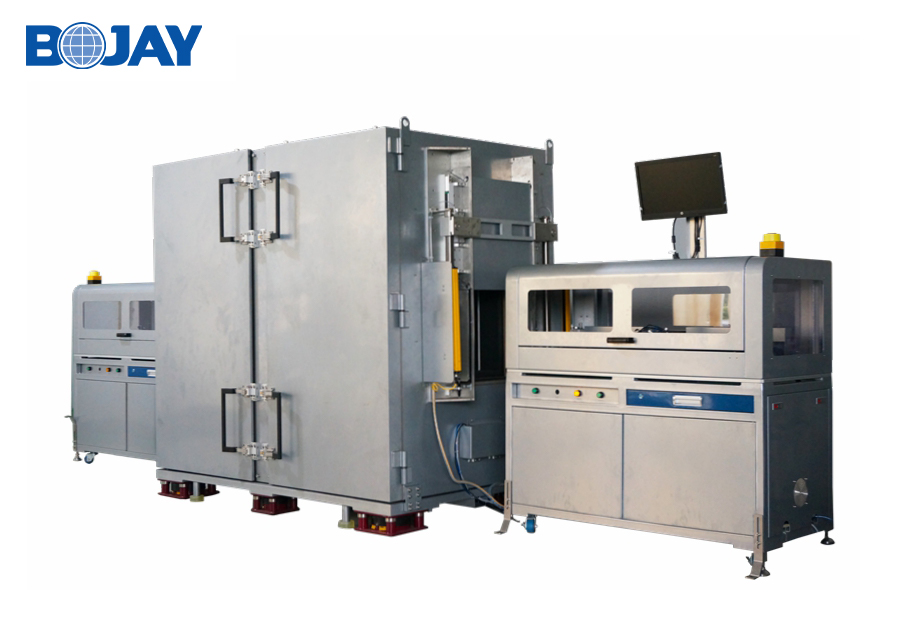

Online Testing Acoustic Chamber | BJ-AB24

Application speakers, notebook computer, PC and other consumer electronics products audio testing needs

  • 产品详情
  • 文件下载


Main Features

● Manual/automatic operation

● Automatic test fixture

● Automated product line testing

● In line testing friendly


Specification

Complete machine dimensions

1376 * 2460 * 2326mm (L*W*H )

External dimensions

1300 * 2000 * 1800mm (L*W*H )

Inner dimensions

1003 * 365 * 820mm (L*W*H )

Operating Door Dimension

350 * 450mm (W*H)

Maintenance Door Dimension

675 * 1426mm (W*H)

Base dimensions

2040 * 1307 * 275mm (L*W*H )

Main Structure

Metal

Net weight

2288KG


Acoustic Criterion

Frequency

100Hz

200Hz

500Hz

1000Hz

5000Hz

Sound insulation specification

>15dB

>30dB

>40dB

>50dB

>50dB

Reference background noise

  36dBA (Environment pink noise 75dBA)
