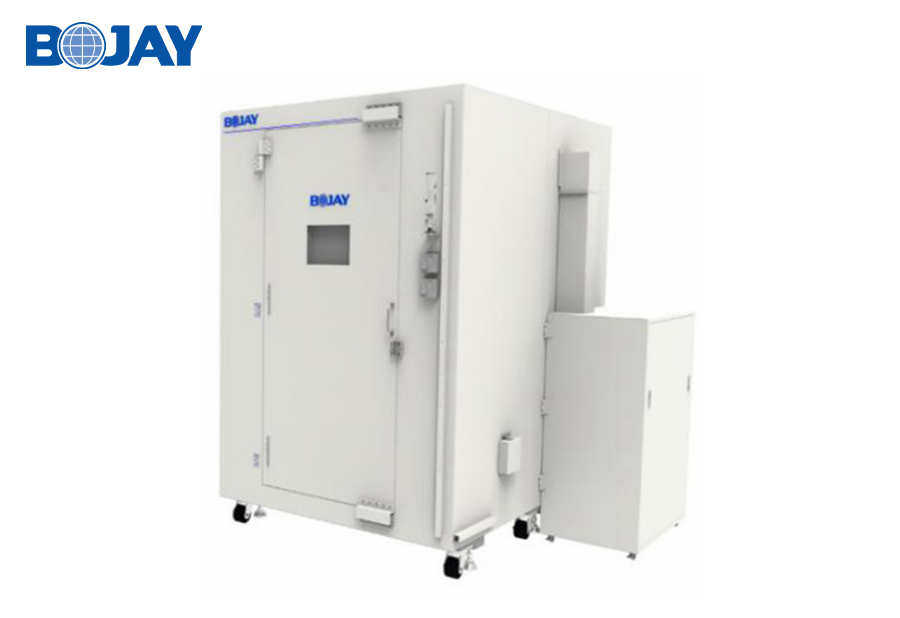

Acoustic Room | BJ-B52C
Application part, Mobile phone products, Pad, PC and other consumer electronics products audio testing needs
- 产品详情
- 文件下载
Main Features
● Manual operation
● Independent test room
● Operator allowed to work inide
● Larger size device coverage
Specification
Complete machine dimensions | 2396 * 2103 * 2320mm(L*W*H) |
External dimensions | 1904 * 2031 * 2320mm(L*W*H) |
Inner dimensions | 1475 * 1512 * 1830mm(L*W*H) |
Operating Door Dimension | 590 * 1744mm(W*H) |
Main Structure | Metal |
Net weight | 2200KG |
Acoustic Criterion
Frequency | 100Hz | 200Hz | 500Hz | 1000Hz | 5000H |
Sound insulation specification | >20dB | >30dB | >40dB | >50dB | >50dB |
Reference background noise | 30dBA (Environment pink noise 75dBA) |
