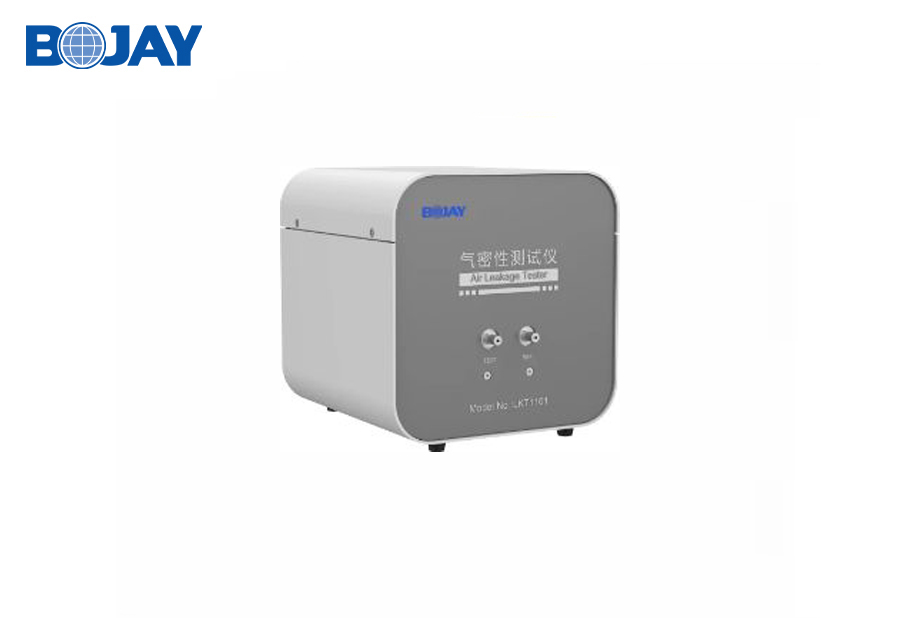

Air Leak Tester | LKT1101

Applicable to testing of mobile phones and other consumer electronics and products with waterproof and sealing requirements on car berths;

Manual testing, semi-automatic testing, automatic testing

For laboratory and mass production testing

  • 产品详情
  • 文件下载


Main features

● Supports non-destructive testing of IPX7/X8 or higher standards

● Has features such as zero reset, curve analysis, cycle testing, TCP/IP data transmission, etc

● Supports both positive pressure and negative pressure detection methods

● Small size, High instrument accuracy and High cost performance

● Customizable complete testing scheme


Parameters

Test  pressure range

-80~200 KPa (Option)

Pressure accuracy

±1%FS

Differential pressure range

-1000~1000 Pa

Differential pressure accuracy

0.5%Rdg   +1 Pa

Working medium

Dry, oil-free, non-corrosive air

Power input

AC 220V adaptor to DC 24V/1.5A

Communication

RJ45, USB2.0, RS232

Working temperature

10~50°C

Storage temperature

-20~70°C

Input air pressure

5~7 bar

Dimensions

150(W) * 200(D) * 157(H) mm
