Type

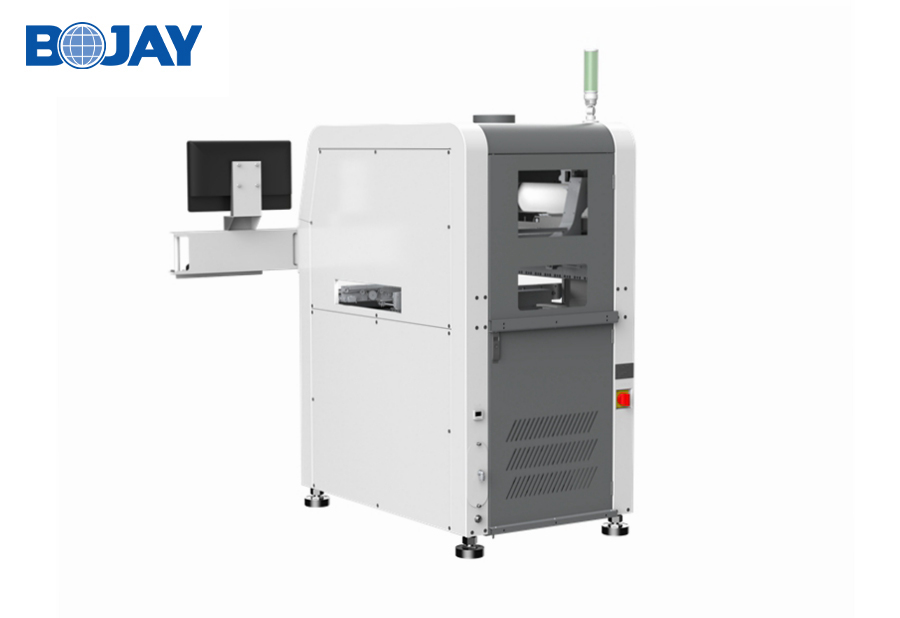

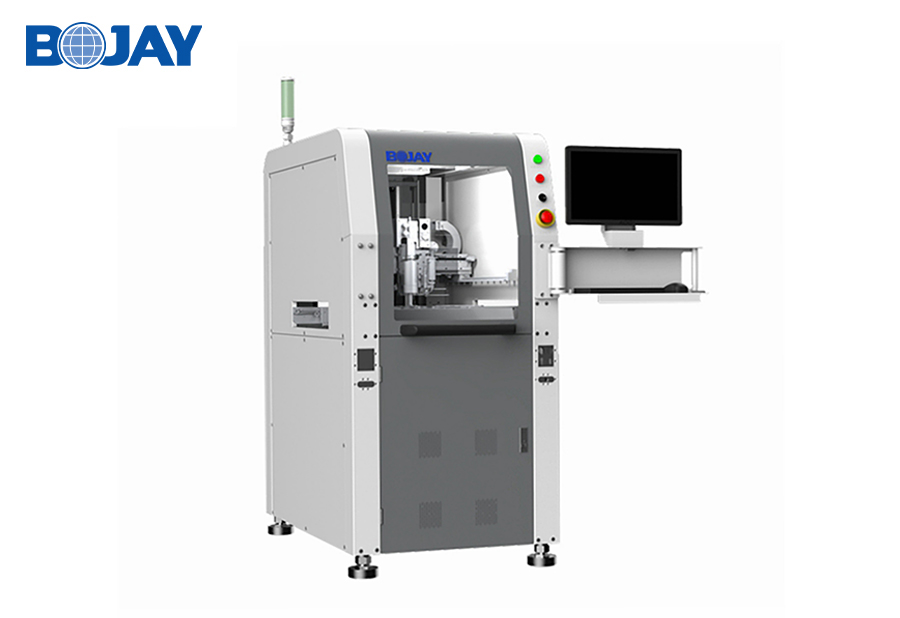

Single valve & Single conveyor Dispenser

Specifications

size (W*D*H)

mm

738 * 1150 * 1880

Weight

kg

880

Axis

XY axis

/

Linear motor

Z axis

/

Servo motor+ High precision grinding

Dispense range (XYZ)

mm

350 * 400

Positioning   accuracy (XY)

µm

±8

Positioning   accuracy (Z)

µm

±20

Maximum   speed (XY)

m/s

1

maximum   acceleration (XY)

G

1

Control module

Control method

/

Industrial computer + Motion control card - premium

Camera

Type

/

Industrial CCD (compatible flying capture)

Pixel

/

130 W

View

mm

10 * 10

Illuminant

/

RWB tri-thoroughfare Stroboscopic illuminant (Optional)

Ranging system

Measuring range

mm

±15

Illuminance area

mm

D=0.07

Repetition accuracy

µm

±30µm (Optional)

Weighing module

Resolving power

mg

0.1

Max capacity

g

220

Software

/

Self development based on Windows operating platform

Conveyor module

Amount

/

Single

Height

mm

910±20

Maximum width

/

410

Minimum width

/

55

Conveyance direction

/

L→R；R→L；

/

L→L；R→R；

Load

kg

≤1.5

Peripheral input

Power Supply

Voltage

VAC

220

Frequency

HZ

50

Power

KW

1.7

Air Supply

Mpa

0.6

Expand communication

Valve communication

(Support Valve)

/

Compatible with Piezo Injection valve, Pneumatic Injection   valve, Screw valve, etc.

Upstream & downstream

/

SMEMA

Equipment alarm

Safety door

/

NONC

Weight alarm

/

Software monitoring

Glue surplus sensor

/

Software & hardware monitoring (Optional)

Cleaning &  maintenance module

Vacuum cleaning

/

Non contact type nozzle cleaning

Rotary wipe

/

Contact type nozzle cleaning (Optional)

Discard table

/

Discard before working
