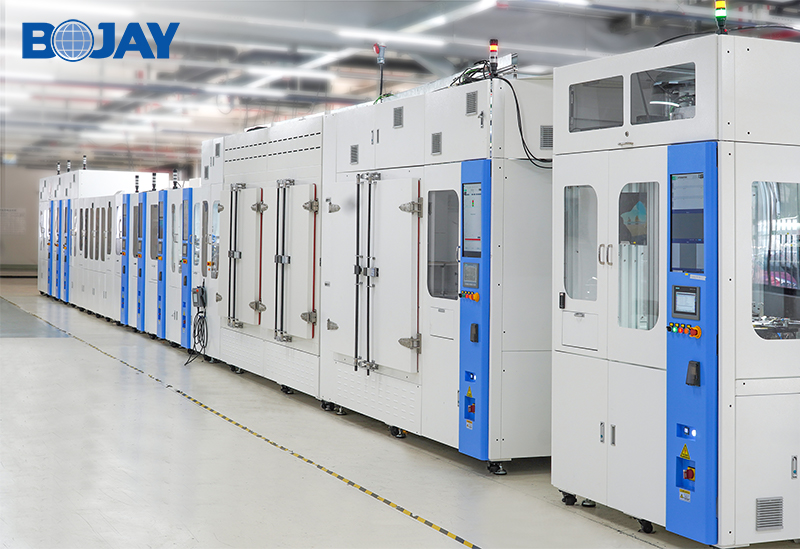

Automotive mm-Wave Radar Assembly & Testing Line

Fully automatic assembly and testing overall solution for automotive 4D mm-Wave radar

Footprint: 132㎡ (23 L * 5.75 W)

UPH: 144

Quick changeover to improve compatibility

  • 产品详情
  • 文件下载


Main features

● Common Base

- Modular design, unified style

- Reduce design time and improve design quality

- Easy to expand and upgrade

● MES system

- Connect with customer MES system

- Traceability

- Production information visualization

● Full line automation

- Only one person needs to feed at intervals

- Reserve AGV auto-docking

● Standard Tray loading & unloading machine

- Realize automatic loading & unloading

- High stability

- High compatibility

 Online run-in test

- 100% run-in

- Reduce footprint; Reduce Ops

 RF chamber

- RF chamber GEN3.0 meet DUT calibration and testing requirement


主要工艺

01 Housing loading                                                          04-2 Plasma cleaning                                07 Run-in test & Product cooling

02 Membrane assembly & Flow test                               04-3 Sealant dispensing & Check              08 Leak test

03 PCBA loading,Flash, FCT & Press-fit                            05 IR riveting                                             09 Sensor test

04-1 Thermal adhesive dispensing & Vision check         06 Product heating                                    10 EOL & Unloading
