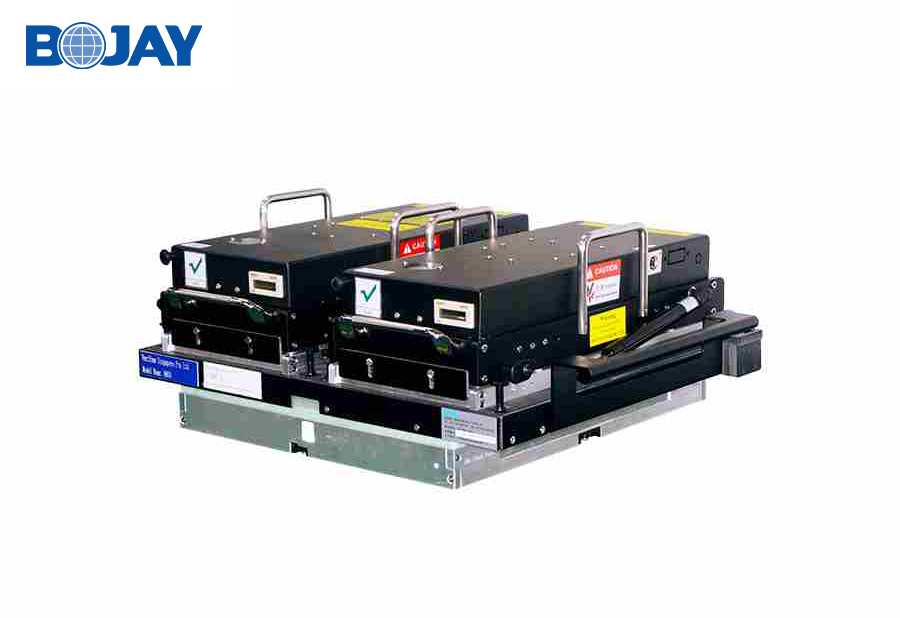

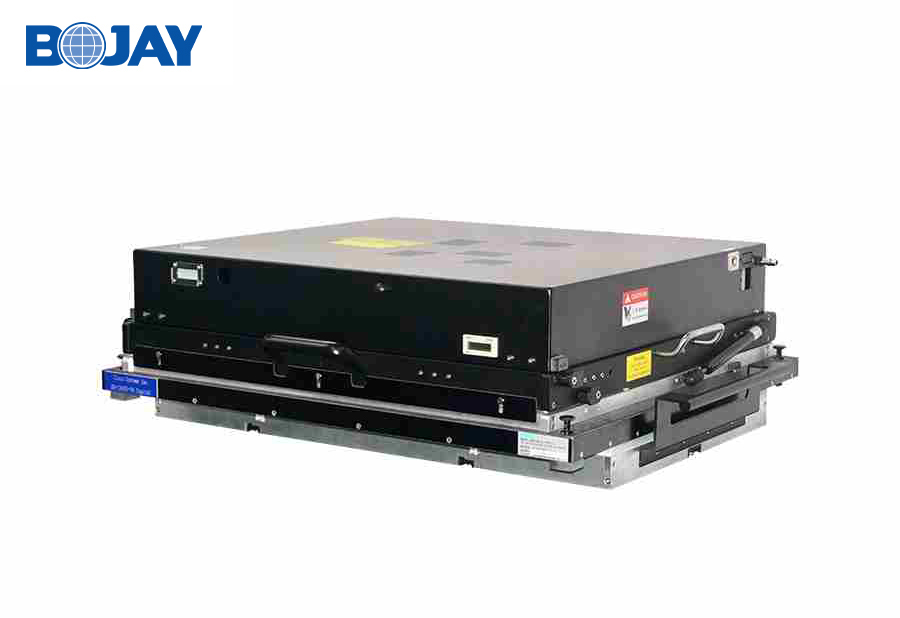

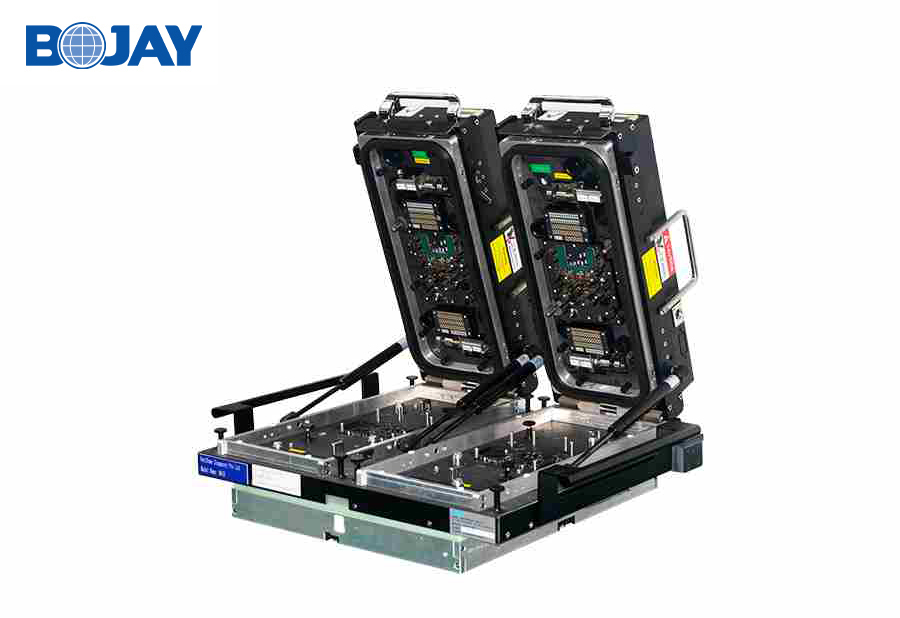

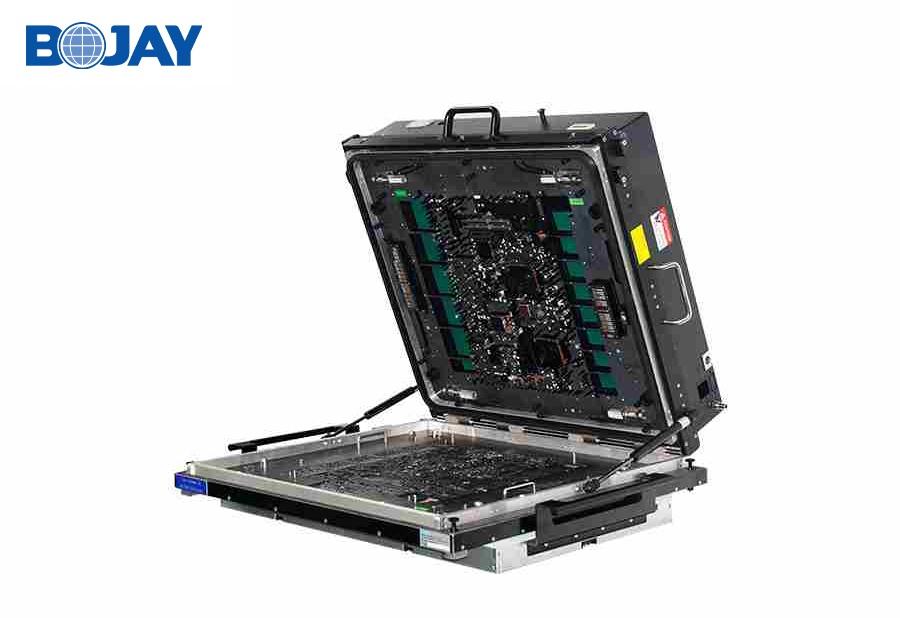

Agilent 3070 platform test solution

Half bank, Full bank Vacuum、Pneumatics fixture

Short wires fixture、Wireless fixture

Complex SAU loopback test

Complex backplane test

Dual Stage、Dual Well fixture

  • 产品详情
  • 文件下载


Advantage

● Vacuum fixture:
  －Simple construction, easy maintenance

● Pneumatics fixture:
  －Fixture downward pressing pretty smooth, reduce strain gauge risks
  －Use open architecture, can improve the heat dissipation capacity
  －Fixture downward pressing speed can be adjusted, decrease the impact force for UUT


Vacuum Fixture Basic Information

Design Standard

Standard KIT
Zero flex routing
Guide probe

Vacuum Requirement

0.6-0.8 bar

Fixture Overall dimensions

Half bank: 535(L) * 457(W) * 190(H)mm
Full bank: 898(L) * 457(W) * 190(H)mm

Support maximum PCB size

Half bank: 350(L) * 350(W)mm
Full bank: 700(L) * 500(W)mm

Support maximum test points

Half bank: 2200pcs
Full bank: 4400pcs

Weight

Half: 25-45kg
Full: 65-120k

Color

Black & White

Main material

Aluminium alloys


Pneumatics Fixture Basic Information

Design Standard

Standard KIT
Zero flex routing
Guide probe

Air pressure requirement

0.6-0.7 Map

Fixture Overall dimensions

Half bank: 535(L) * 520(W) * 330(H)mm
Full bank: 873(L) * 590(W) * 330(H)mm

Support maximum PCB size

Half bank: 350(L) * 350(W)mm
Full bank: 600(L) * 400(W)mm

Support maximum test points

Half bank: 2200pcs
Full bank: 4400pcs

Weight

Half: 40-85kg
Full: 100-140kg

Color

Black & White

Main material

Aluminium alloys
