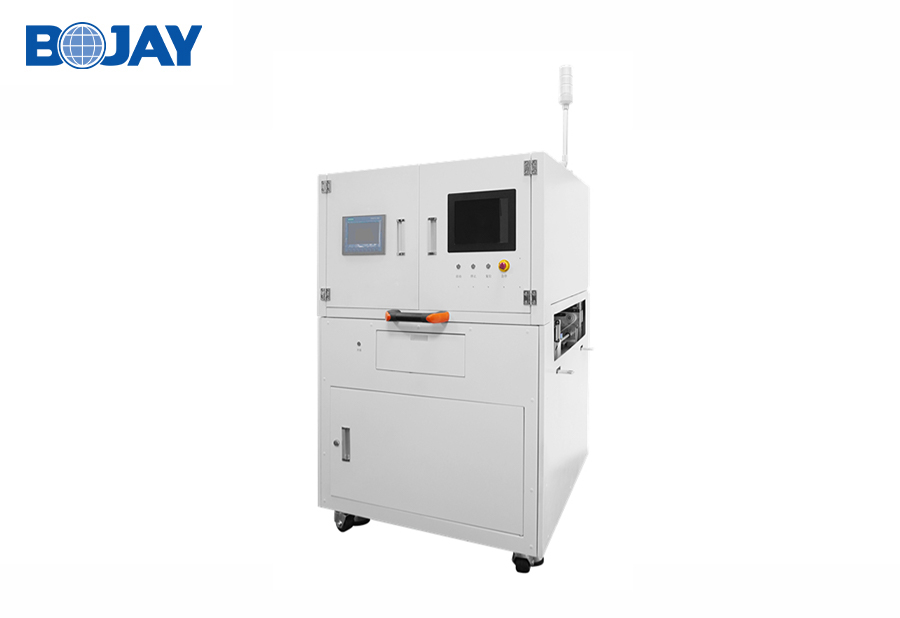

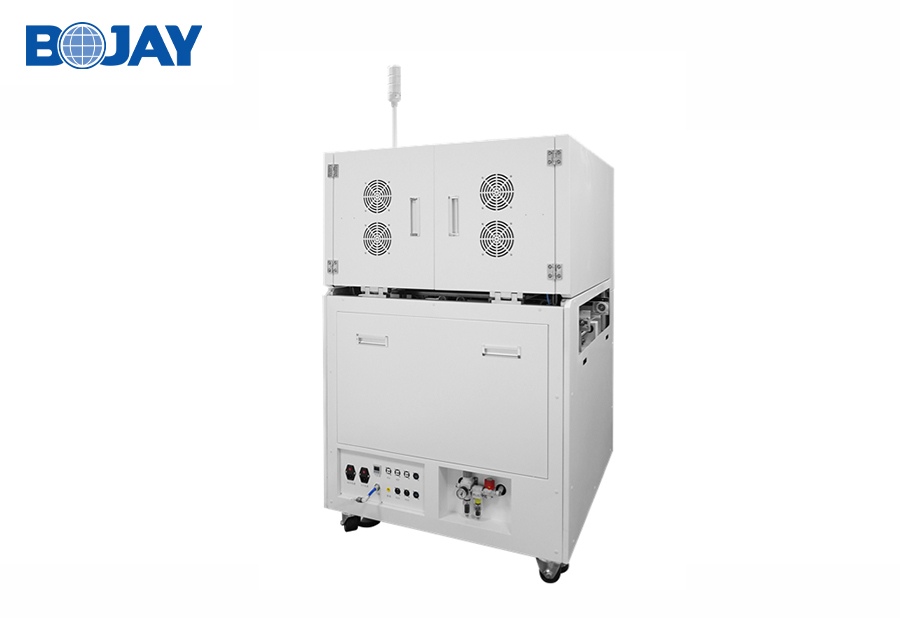

In-line test equipment(Server Mainboards)
For fuctional testing of server mainboards
In-line automatic test(including CPU、DIMM、USB、 HDMI、PCIE、SATA、SAS、VGA、M.2、Type-C etc.)
The modules of device can be replaced quickly
Simultaneous multi-product testing and delivery
- 产品详情
- 文件下载
Machanical Specification
Outer Dimension (without base) | 1200(L) * 900(W) * 1600 (H)mm |
Net Weight | approx. 400kg |
Electrical specification
Power Consumption | 500W |
Input Voltage | 100~120/200~240VAC 50/60Hz |
Control Unit | PLC |
Testing Unit | Computer |
Standard Configuration
LAN | Client server |
Air Gauge | 0.5~0.7 MPa |
ESD | Bosh Terminal |
Power Switch | AC 110V(Foreign)/AC 220V(China) |
Air Source Receptacle | Φ8 |
