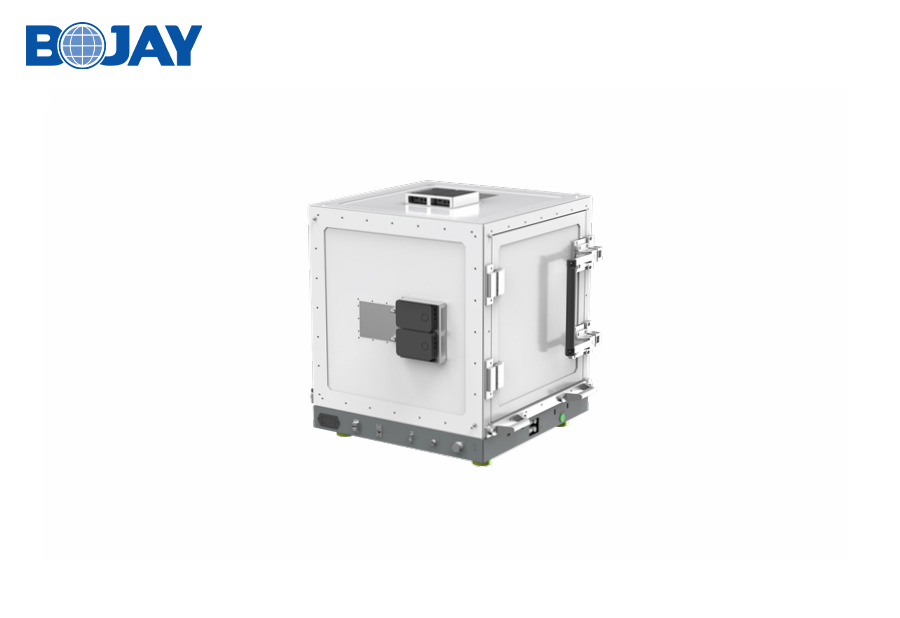

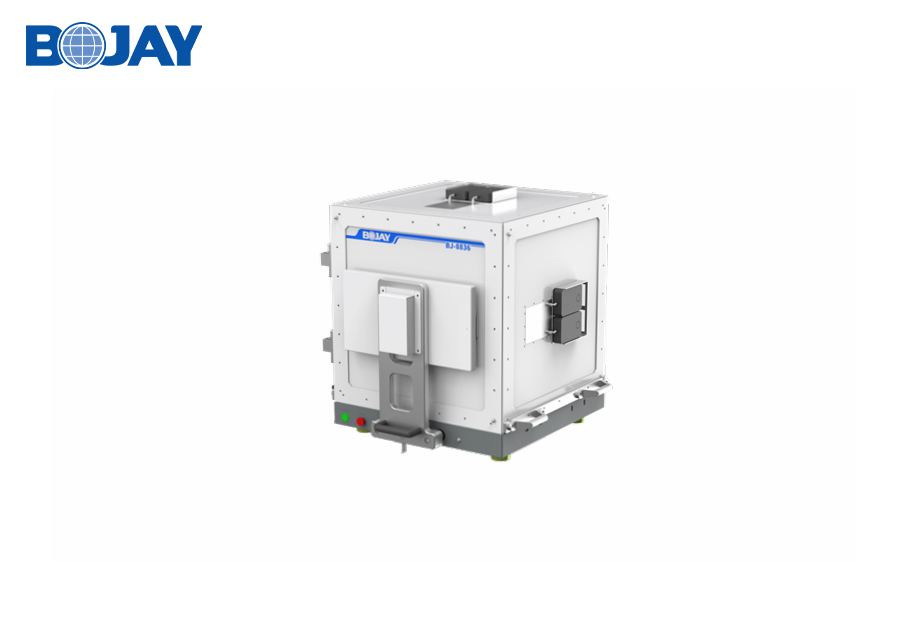

mmWave Anechoic Chamber | BJ-8836
For consumer electronic devices 5G mmWave far field OTA test
Suitable for DUT size < 9"
For mass production application
- 产品详情
- 文件下载
Application
● BJ-8836 anechoic chamber is designed for 5G OTA test.
● Supports DUT size up to 9”.
● Optimized for mass production testing requirements.
● Pneumatic drawer design can be fully automated.
● Modularized panel design (top/bottom/left/right/rear) enables options for customized design and future adaptability for new DUT or programs.
Mechanical Specification
Outer Dimension | 658(W) * 627(L) * 643(H)mm |
Inner Dimension | 441(W) * 441(L) * 441(H)mm |
Operation Door Dimension | 300(W) * 150(H)mm |
Net Weight | approx. 83kg |
Max DUT Size | 160(W) * 240(L) * 50(H)mm |
RF Specification
RF Isolation | 0.7~50GHz >70dB |
Absorber Reflectivity | <-30dB in FR2 |
Far Field Distance | 70-120mm(typ.)160mm(max in one direction) |
