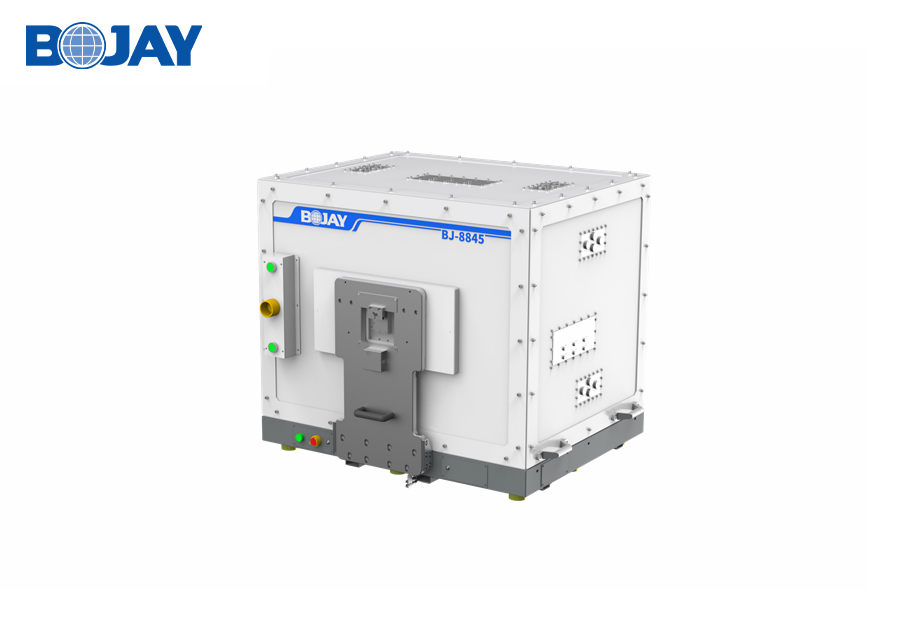

mmWave Anechoic Chamber | BJ-8845
For 5G mm Wave far field OTA test
Suitable for DUT size < 13.5"
For mass production application
- 产品详情
- 文件下载
Application
● BJ-8845 anechoic chamber is designed for both FR1 and FR2 OTA Test
● Supports DUT size up to 13.5”
● Large internal size and designed fixture mounting options allows an easily configurable setup for either FR1 and FR2 testing
● Large front door opening along with flexible measurement antenna adjustment plus a modular panel design fit various products
● Pneumatic drawer design can be fully automated
Mechanical Specification
Outer Dimension | 1035(W) * 840(L) * 845(H) mm |
Inner Dimension | 775(W) * 557(L) * 575(H) mm |
Operation Door Dimension | 375(W) * 175(H) mm |

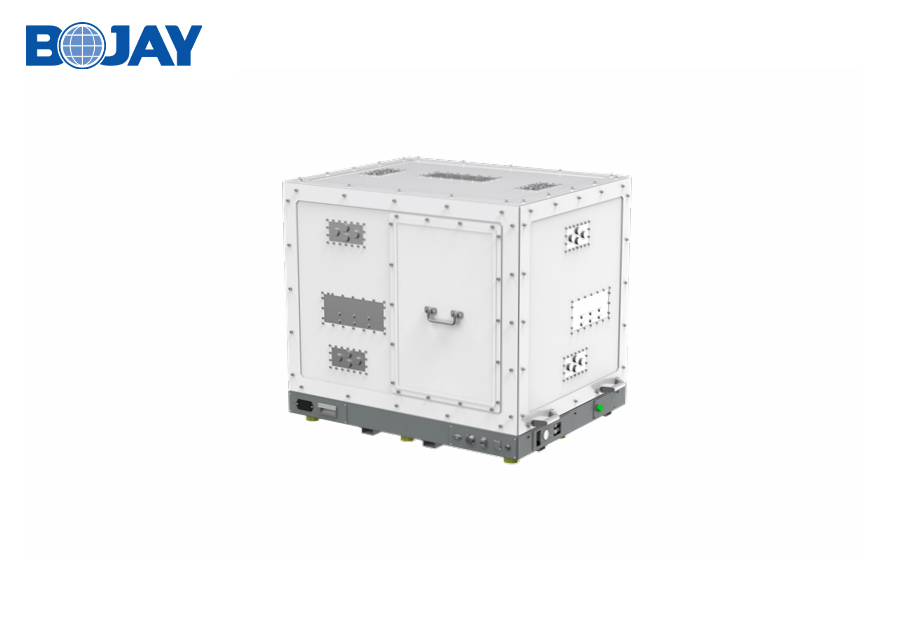

Side door size | 350(W) * 525(H)mm |
Net Weight | approx. 175 kg |
Gross Weight | approx. 190 kg |
RF Specification
RF Isolation | 0.7-70GHz >70dB |
Absorber Reflectivity | <-40dB in FR2 |
Far Field Distance | 100-150mm (adjustable) |
