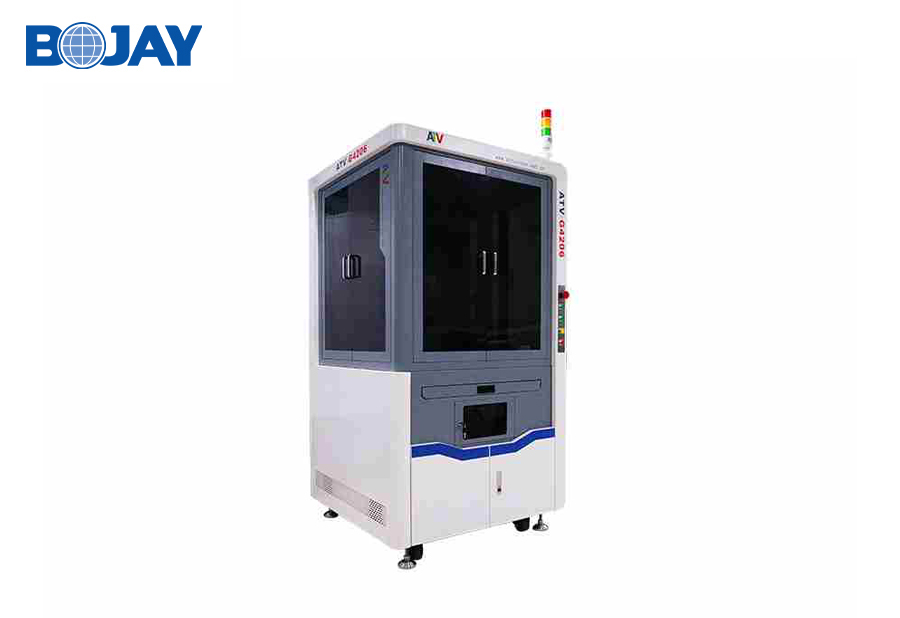

Six-sided Optical Inspection equipment | ATV-G4206
Applied in Machinery and electronics, Food, Medicine and Medicine and Medial apparatus.(Chip resistance, capacitance and inductance appearancedetection sorting)
- 产品详情
- 文件下载
Main features
● Solenoid valve: Millisecond response, long life (5 billion timeslifetime maintenance free), high frequency (1200 Hz)
● Vibrating disk: Open high speed, up to 7000 pcs/min
● Material-leading: High precision guide block and selectiveelectrostatic device (Patent application has been applied)
● Glass plate: High transmittance (>95%), high precision (0.01 mm)
● Luminous source: Four color light
● Motor: High precision DD motor (20Bit)
Detection speed of passive components
British System | 008004 | 01005 | 0201 | 0402 | 0603 | 0805 | 1206 | |
Metric System | 0201 | 0402 | 0603 | 1005 | 1608 | 2012 | 3216 | |
Maximum Speed(PCS/min) | L/C | 3000 | 11000 | 13000 | 10000 | 8000 | 4000 | 3000 |
R | / | 7000 | 8000 | 7500 | 5500 | 3500 | 2500 |
Note: The actual detection speed is based on the evaluation of customers products
