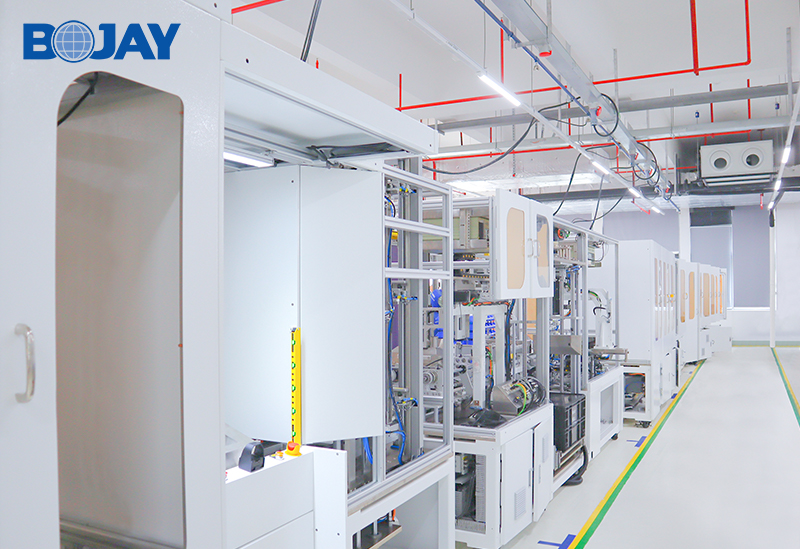

Vehicle Screen Assembly & Testing Line

Used for the production of vehicle display screens

Compatible with 3 different products

Covering an area of 18m L * 5m W

Only 3 operators needed, UPH: 70

  • 产品详情
  • 文件下载


Main features

 Common Base

- Modular design, unified style
- Reduce design time and improve design quality
- Easy to expand and upgrade

 Double-sided WPC

- Meet the different needs of assembly line and testing line
- Assembling and testing shared trays, lower cost, fast changeover
- Reduced footprint

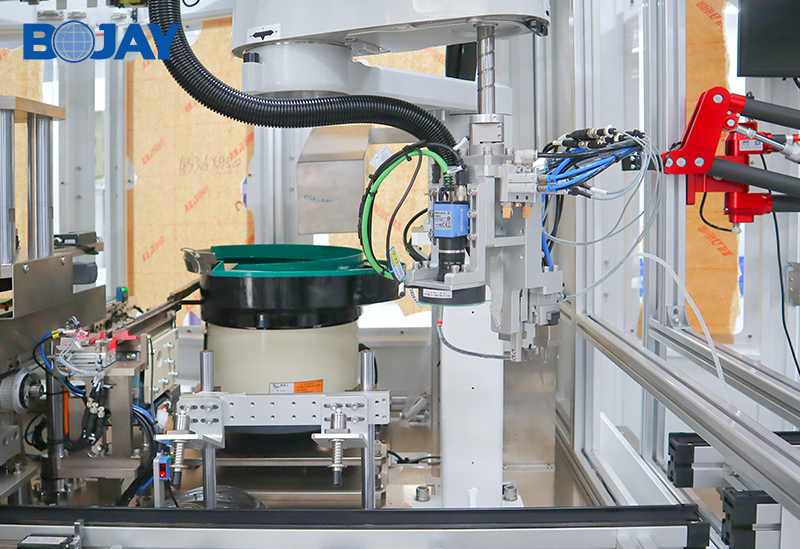

 Screwing platform

- Process, quantity and location can be edited arbitrarily

 Online optical test

- Smart design to realize online camera obscura
- Achieving uniformity, Implementing algorithms such as Black Mura

 MES system

- Data traceable
- Visualization of the whole line status

 Typhoon cleaning system

- Self-made system to reduce cost

 Online vibration test

- 100% defect detection to improve product quality


Main Technology

01 Semi-auto module loading                                06 Vibration testing             11 Product heating                 16 Labeling

02 PCBA screwing                                                   07 Clip assembly                  12 Run-in testing                    17 Package

03 Connector screwing                                           08 Product flipping              13 Product cooling

04 FPC connecting manually & cover loading       09 Clip assembly                  14 EOL

05 Cover screwing                                                  10 Film tearing                     15 Cosmetic testing
