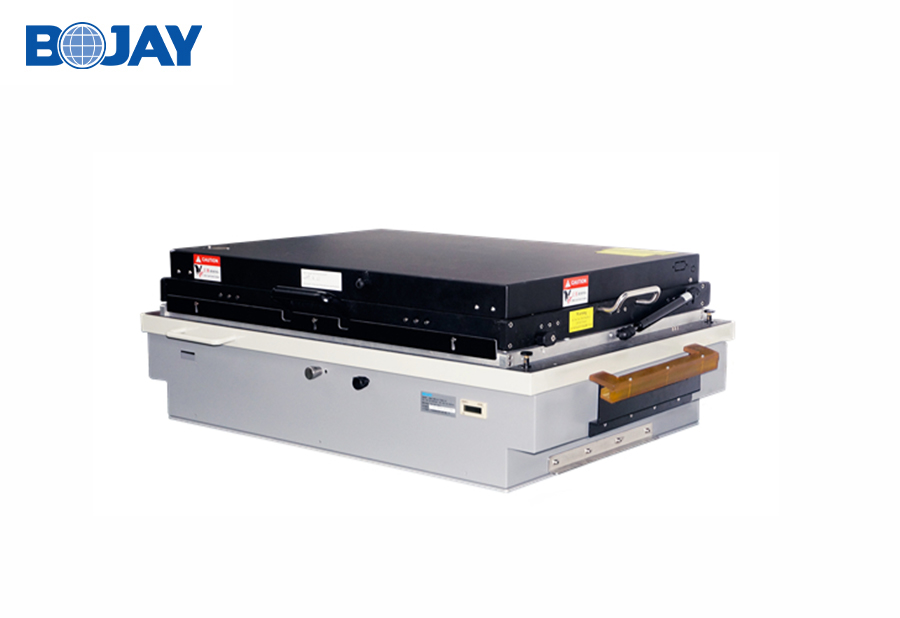

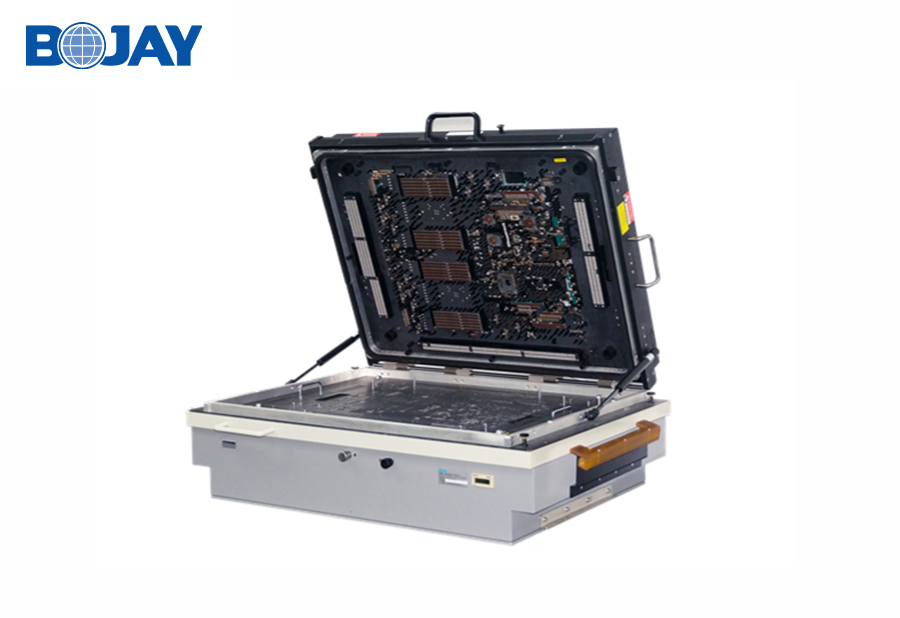

Teradyne platform test solution

GR2280,GR2286,TSLH,TS128L vacuum、Pneumatics fixture

Short wires fixture、Wireless fixture

Complex SAU loopback test

Complex backplane test

Dual stage, Dual well fixture

  • 产品详情
  • 文件下载


Fixture Advantage

● One fixture support maximum test points to 7000pcs

● Support maximum PCB size :800*450mm


Basic Information

Design Standard

Standard KIT
ZeroFlex routing
Guide probe

Vacuum requirement

Vacuum pressure: 0.6-0.8 bar

Standard Overall dime

886(L) * 546(W) * 245(H)mm

Support maximum PCB size

800(L) * 450(W)mm

Support maximum test points

7168pcs

Net weight

20-85KG

Color

Black & Gray

Main structure

Aluminium alloy & fibreboard
