TRI platform test solution

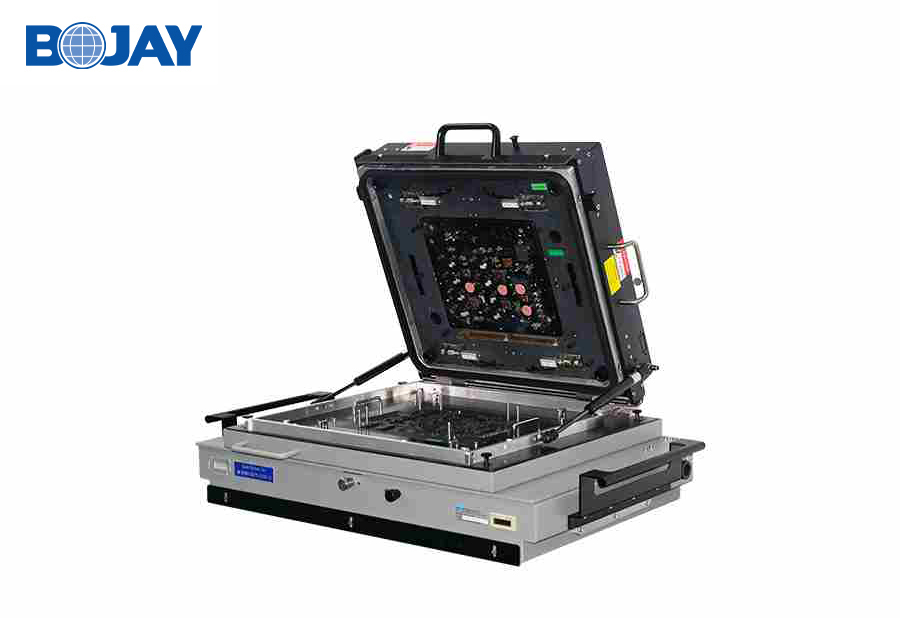

TR518、TR5001 press-bed fixture

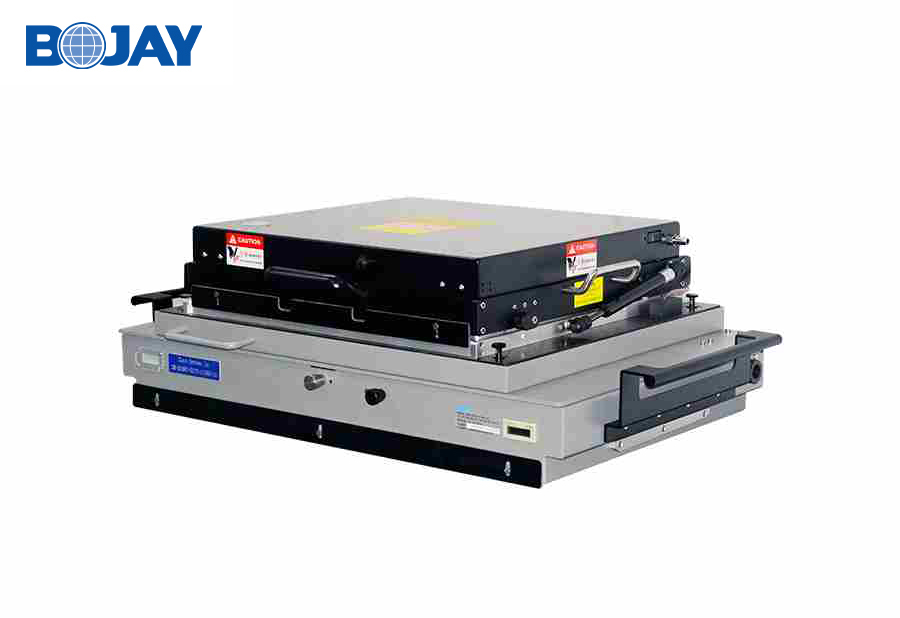

TR8001 Vacuum、Pneumatics fixture

TR8001 Dual stage、Dual well fixture

Fast measurement speed

Fixture prices comparatively low

Simple construction, easy maintenance

Easy manufacture, short delivery time

  • 产品详情
  • 文件下载


TR518、TR5001 Press-bed fixture Basic Information

Design Standard

Standard KIT
Zero flex routing
Guide probe

Air Pressure Requirement

0.6-0.7 Mpa

Fixture Overall dimensions

650(L) * 500(W) * 195(H)mm

Support maximum PCB size

520(L) * 350(W)mm

Support maximum test points

3328pcs

Weight

15-32KG

Color

Gray

Main structure

Fibreboard & iron plate


TR8001 Vacuum Fixture Basic Information

Design Standard

Standard KIT
Zero flex routing
Guide probe

Vacuum requirement

0.6-0.8 bar

Fixture Overall dimensions

886(L) * 546(W) * 245(H)mm

Support maximum PCB size

500(L) * 400(W)mm

Support maximum test points

3584pcs

Weight

50KG

Color

Black & Gray

Main structure

Aluminium allo & Fibreboard
