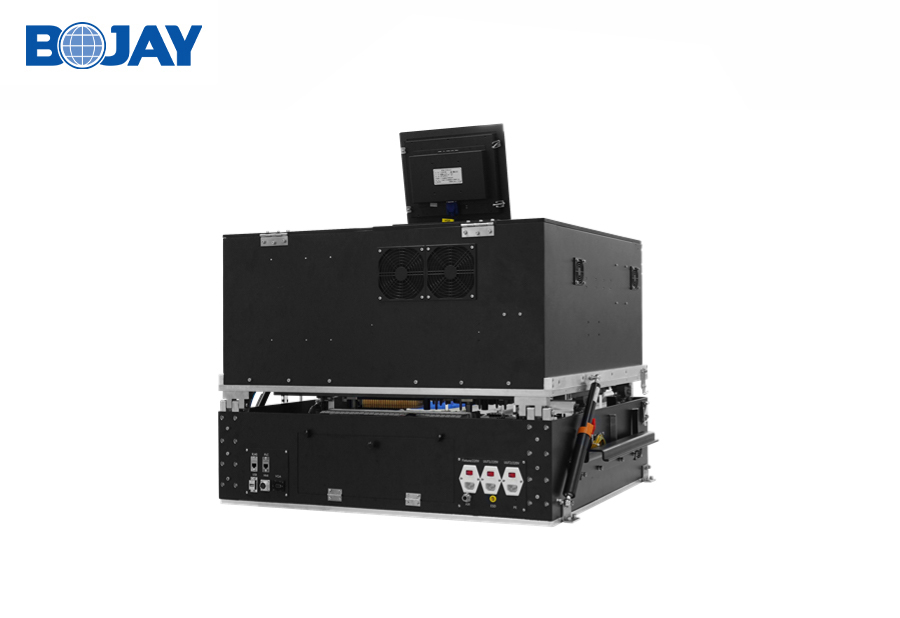

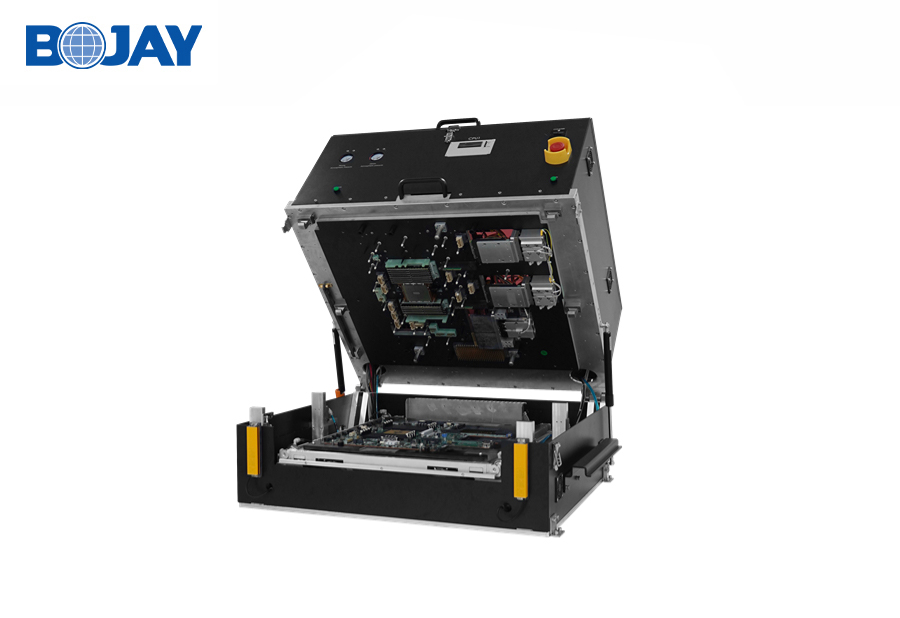

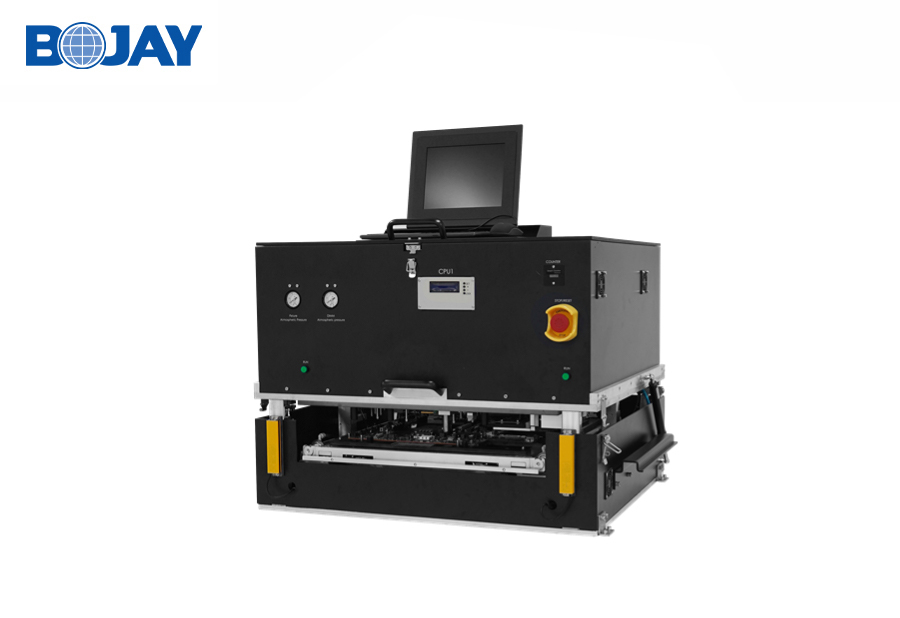

Drawer-type functional test fixture

Manual/Automatic switching

Drawers get in and out automatically; Automatic testing

Can be used with transplanter or robot or lifter

Automatically insert and remove modules(including CPU、DIMM、USB、HDMI、PCIE、SATA、SAS、VGA、M.2、Type-C etc.)

For mass production in workshop

  • 产品详情
  • 文件下载


Machanical Specification

Outer Dimension (without base)

850(L) * 750(W) * 654(H)mm

Opening Angle

55°±5°

Net Weight

约200kg


Electrical specification

Power Consumption

500W

Input Voltage

100~120/200~240VAC   50/60Hz

Control Unit

PLC

Testing Unit

Computer
