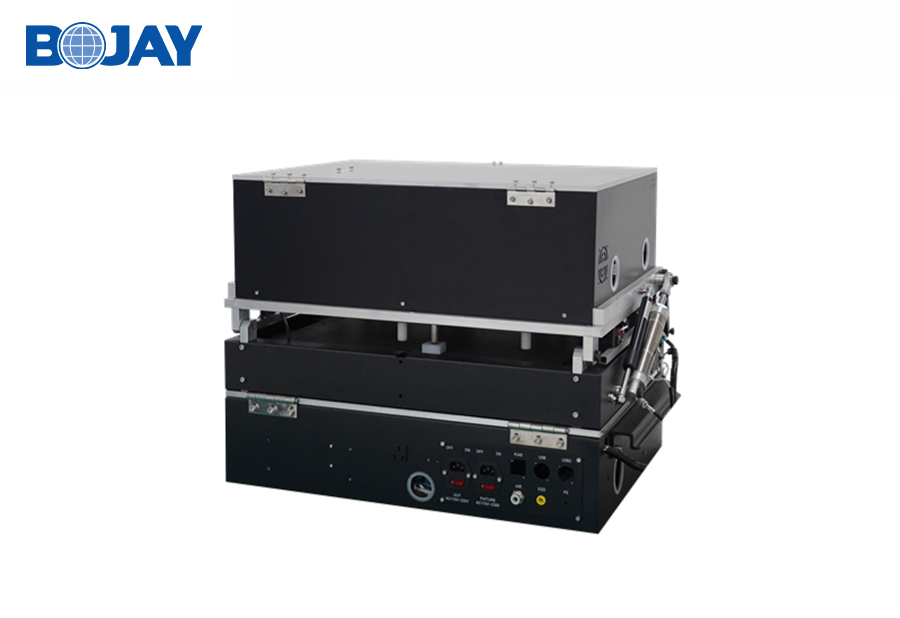

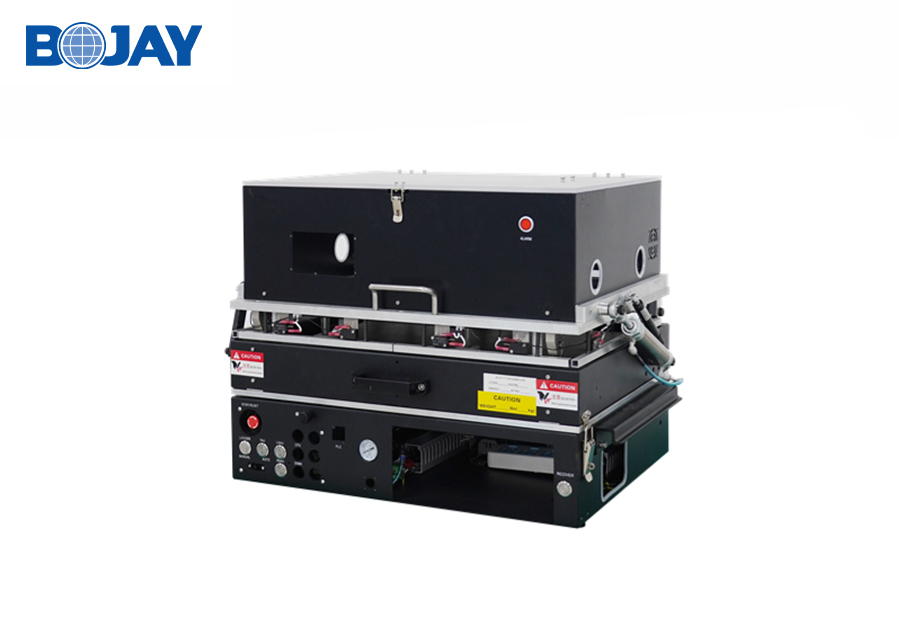

Clamshell-type Functional Test Fixture

解决方案

Manual/Automatic switching

Automatic switch cover

Automatically insert and remove modules(CPU、DIMM、USB、HDMI、PCIE、SATA、SAS、VGA、M.2、Type-C etc.)

Automatic testing

For mass production in workshop

Machanical Specification

Outer Dimension (without base)

A: 650(L) * 500(W) * 448(H)mm

B: 750(L) * 600(W) * 460(H)mm

C: 850(L) * 650(W) * 460(H)mm

D: 900(L) * 500(W) * 460(H)mm

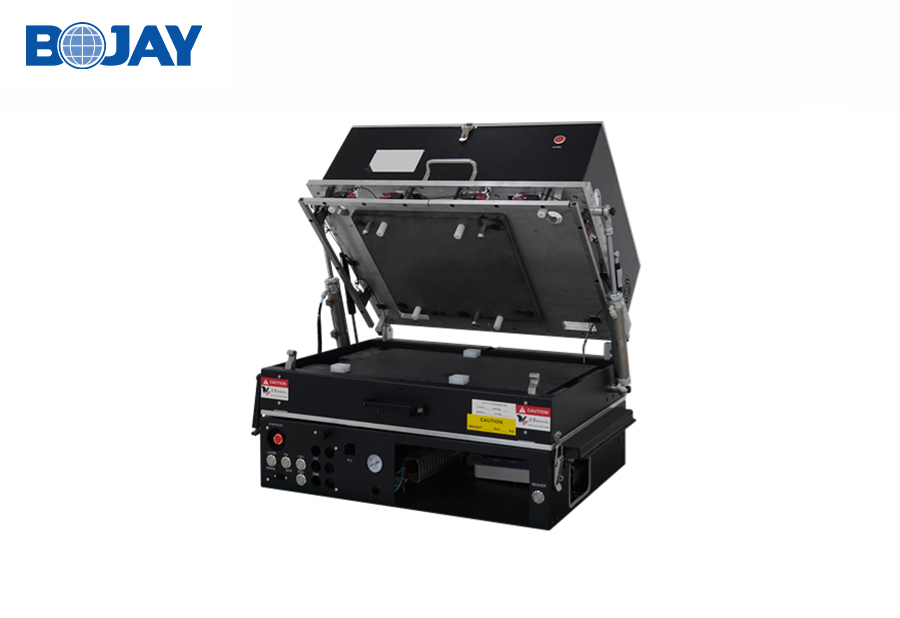

Opening Angle

55°±5°

Net Weight

A: approx. 90kg

B: approx. 140kg

C: approx. 180kg

D: approx. 180kg

Electrical specification
