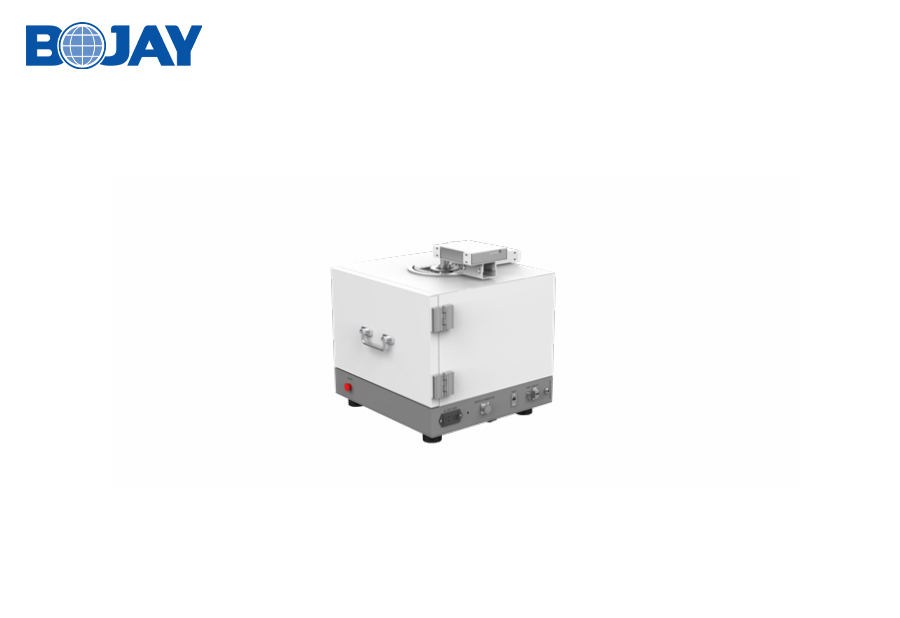

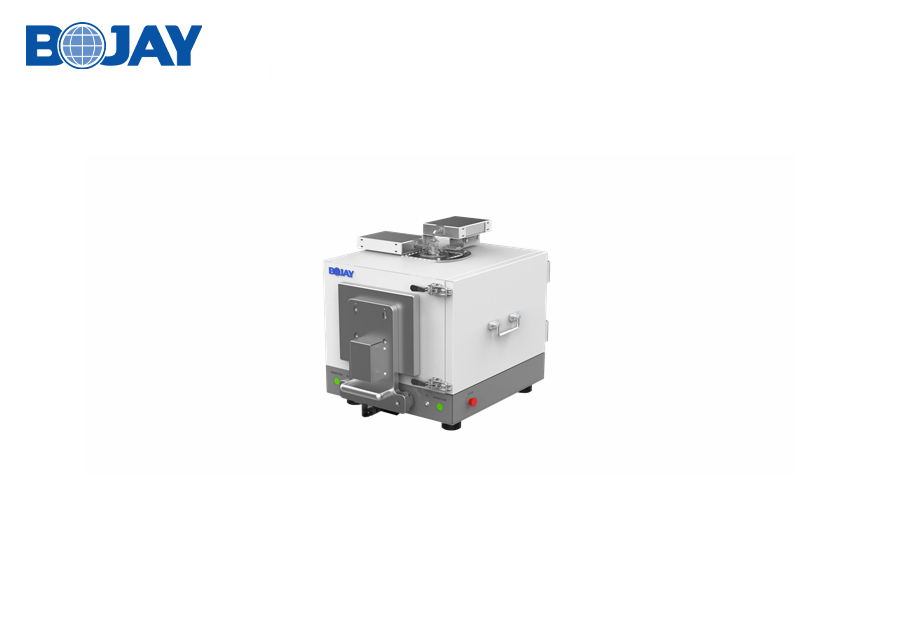

mmWave Anechoic Chamber | BJ-8831

For consumer electronic devices 5G mmWave far field OTA test

Suitable for DUT size < 6.5"

For mass production application

  • 产品详情
  • 文件下载


Application

● BJ-8831 anechoic chamber is designed for 5G OTA Test for frequency up to 70 GHz

● Supports DUT size up to 6.5”

● Optimized for mass production testing requirements

● Pneumatic drawer design can be fully automate


Mechanical Specification

Outer Dimension

464(W) * 586(L) * 378(H)mm

Inner Dimension

322(W) * 353(L) * 189(H)mm

Operation Door Dimension

200(W) * 160(H)mm

Net Weight

approx. 34kg

Max DUT Size

100(W) * 170(L) * 50(H)mm

DUT Weight

<0.8kg


RF Specification

RF Isolation

0.7~70GHz>70dB

Absorber Reflectivity

0.7~70GHz<-30dB

Far Field Distance

100mm
