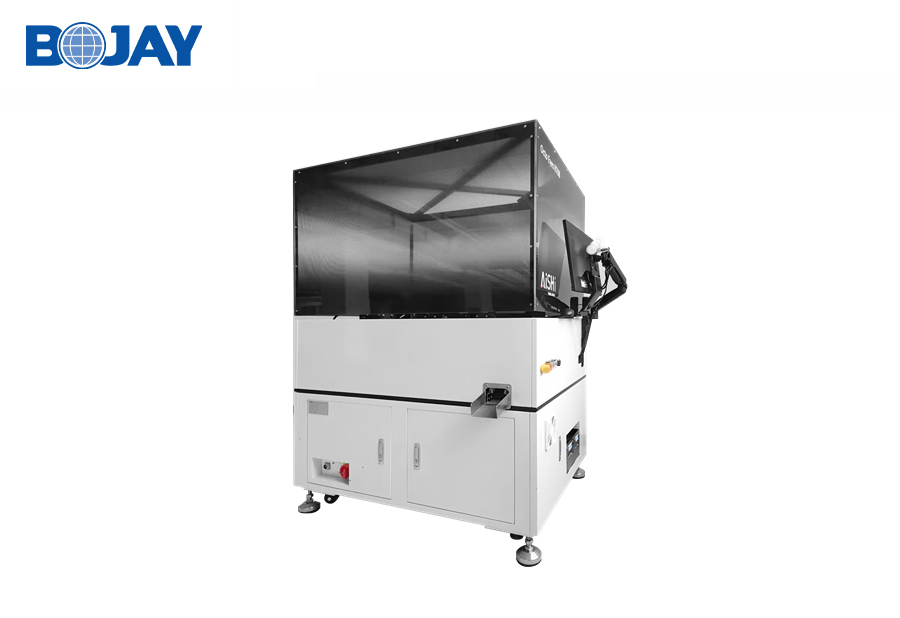

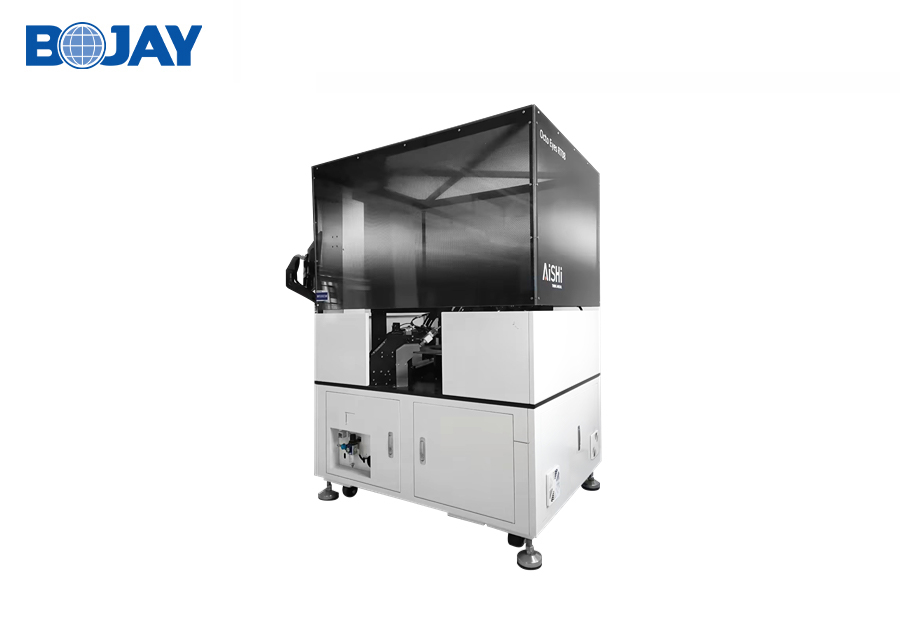

Electrolytic capacitors AOI | E-CDJ01
E-CDJ01 AOI is designed for automatic cosmetic inspection of electrolytic capacitors
Comprehensive inspection of electrolytic capacitor body and pin defects, Scratch、Dent、Leads broken & anodization、Waist NG、body contamination、coating N, etc
- 产品详情
- 文件下载
Main features
● 100% capture of electrolytic capacitor body and pin defects
● UPH is 3600;Detectability:>99%; Escape:<0.3%
● A variety of online data analysis tools to help customers quickly find problems and improve the process
● Flexible equipment, only need to plug a cable can be used
● Flexible software algorithms, compatible with a variety of case products, can be switched at any time the model algorithm library without downtime debugging
Mechanical Specification
Outer Dimension | 1315(W) * 1990(L) * 2050(H)mm |
Product Weight | approx. 800kg |
Electrical Specification
Power Consumption | 3KW |
Input Voltage | AC 220V 50Hz |
Optical Specification
Area Camera Resolution | 1920 * 1200 |
